Electrical systems, designed to be approved.
Power, lighting, low-current, and fire alarm design that meets SBC, NEC, and SEC requirements coordinated in BIM with the rest of your project.
10+ yrs senior engineers
ISO 19650 BIM workflow
SBC compliant
Riyadh + Egypt office
Overview
What we do
Our electrical engineers design the full electrical scope for commercial, industrial, and residential projects in the Kingdom from the main distribution board down to the last light fitting. Every system is sized using documented calculations (load schedules, voltage drop, short-circuit, earthing, and lighting calcs) and modeled in Revit MEP so it is coordinated with structure and architecture from day one.
Scope
What we deliver

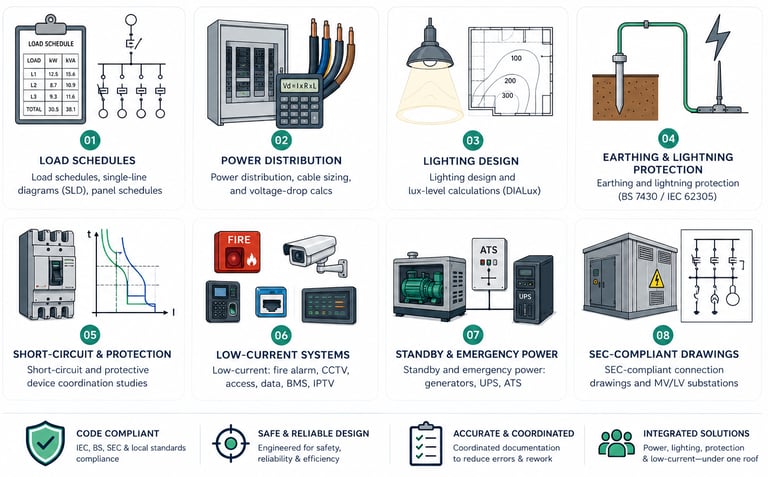

01
Load schedules, single-line diagrams (SLD), panel schedules
02
Power distribution, cable sizing, and voltage-drop calcs

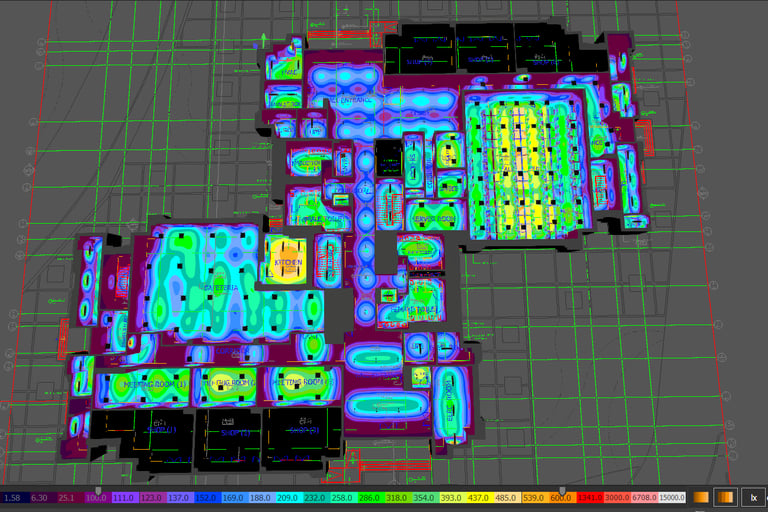

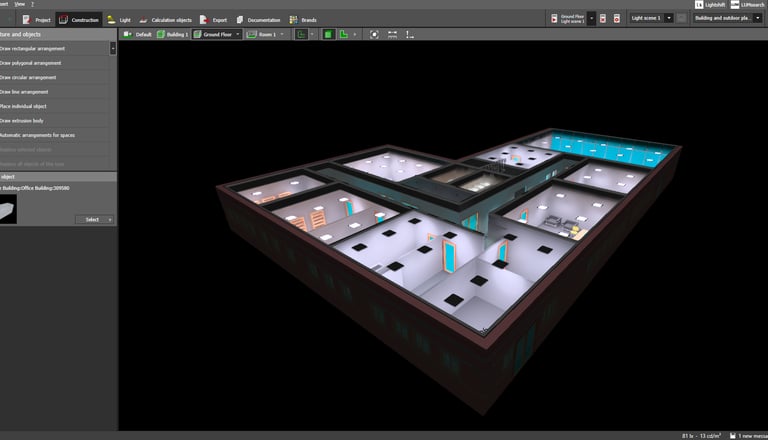

Lighting design and lux-level calculations (DIALux)
03
04
05
06
07
08
Earthing and lightning protection (BS 7430 / IEC 62305)
Short-circuit and protective device coordination studies
Low-current: fire alarm, CCTV, access, data, BMS, IPTV
Standby and emergency power: generators, UPS, ATS
SEC-compliant connection drawings and MV/LV substations
workflow
Our Process
Load assessment
System sizing
Distribution
Layouts
Approval
A 5-step engagement that takes your project from kickoff to certified delivery.
We build a connected load schedule from architectural and process inputs.
Transformers, generators, and main panels sized with calculations.
SLDs, panel schedules, and cable schedules issued.

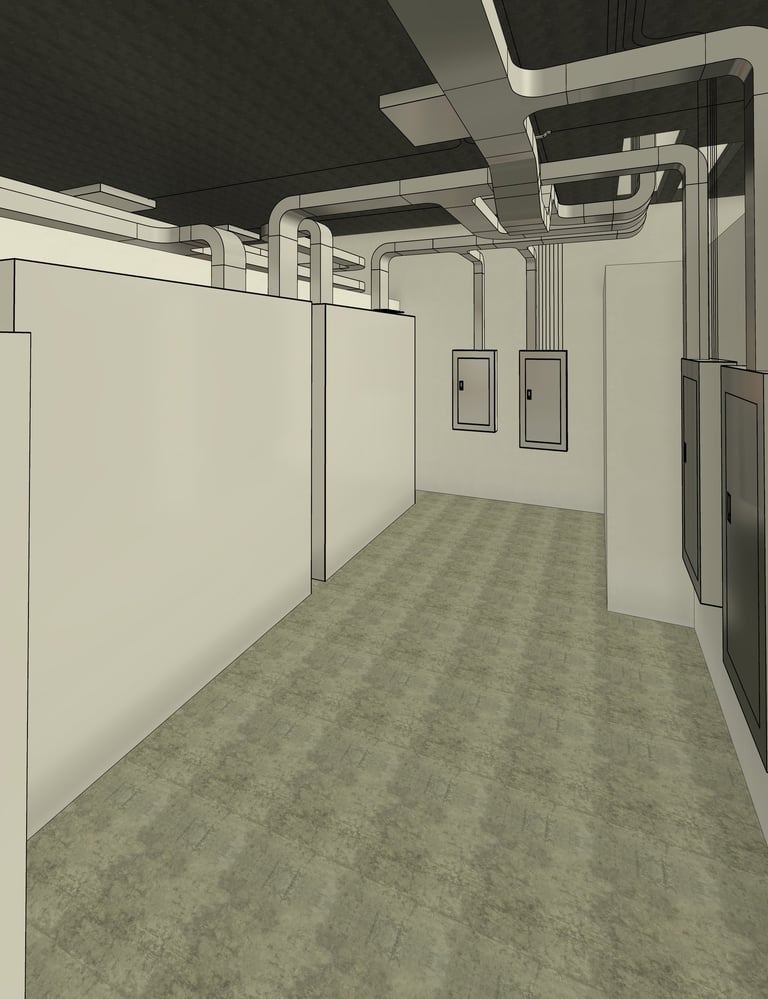

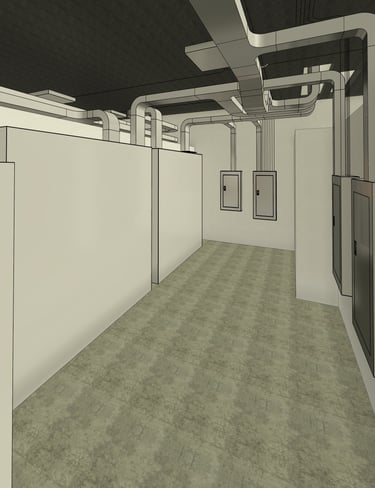

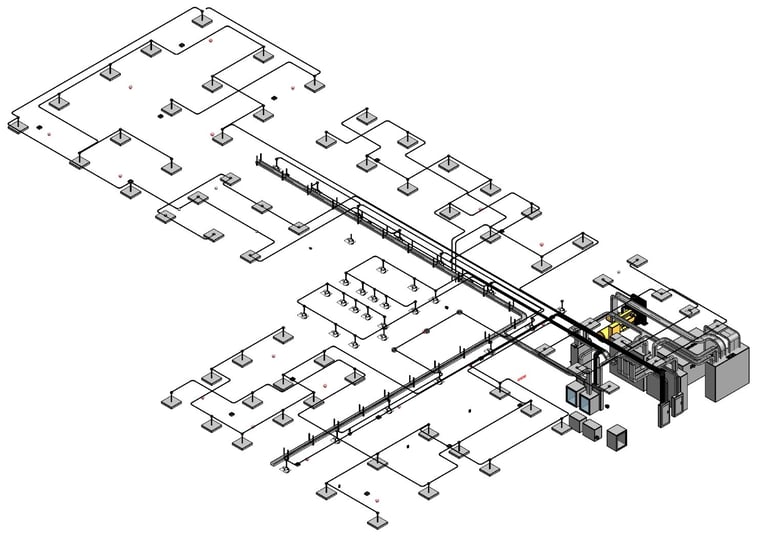

Lighting, power, and low-current modeled in Revit MEP.
Drawings submitted for SEC / Civil Defence / consultant approval.
Selected work
Recent Projects
A snapshot of recent BIM engagements across the Kingdom.
Compliance
Standards & software
SBC 401 (Electrical)
NFPA 70, NFPA 72, IEC 60364
SEC distribution standards
Revit MEP, DIALux, ETAP
Request an electrical proposal.
Share your project's architectural drawings and load brief. We'll respond with a scoped electrical design proposal.
