Residential

Agility Residence, Suez Canal

Structural steel for a residence building detailed in Tekla, issued as fabrication-ready output drawings.

Steel structures

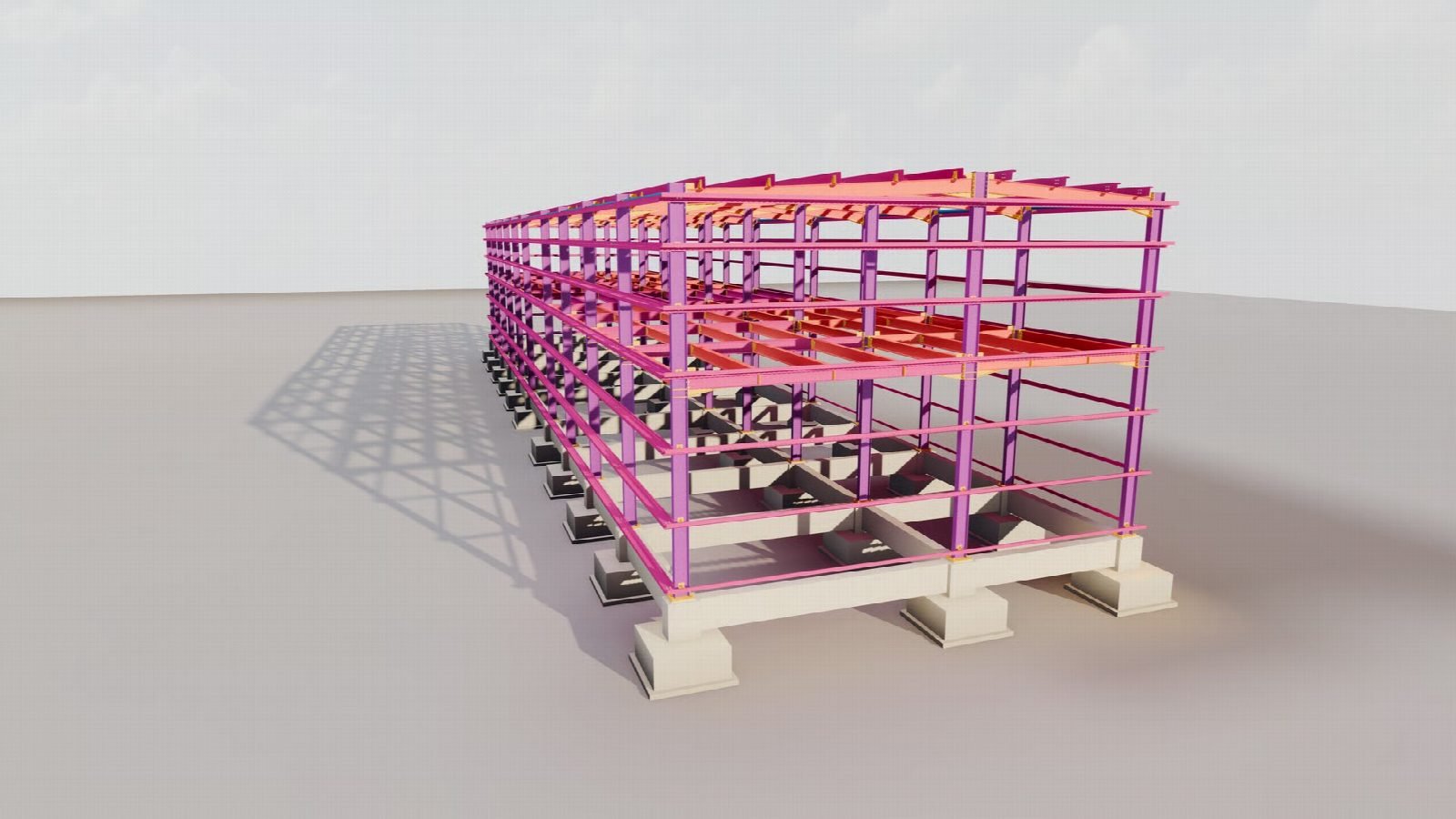

Tekla model of the residence frame.

At a glance

Client
Agility
Location
Sokhna, Suez Canal Economic Zone, Egypt
Year
2023
Scope
Tekla steel detailing

The brief

Steel detailing for a residence building in a logistics zone, taken to fabrication-ready drawings.

What we delivered

  • Residence-building structural steel detailed in Tekla
  • Fabrication-ready output drawings

The model, moving

Tekla model of the residential steel frame.
Walk-through of the steel frame connections.

Project images

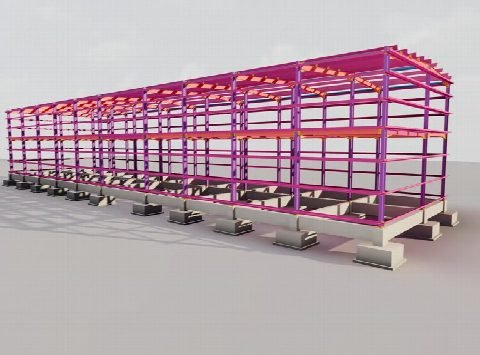

Frame model along the building length.
Frame model along the building length.

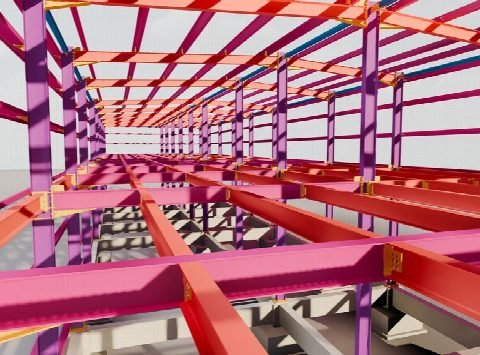

Inside the steel frame model.
Inside the steel frame model.

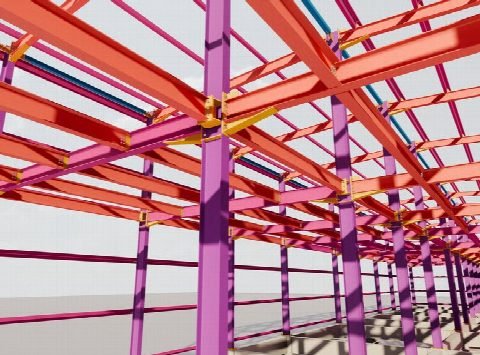

Roof framing detail from the model.
Roof framing detail from the model.
