Agility Strip Mall

Architectural façades with the structure and foundations beneath them: grade beams in ETABS, PEB anchorage in RAM with SBC sliding and overturning checks.

ArchitecturalStructural design
The retail blocks along the landscaped frontage.

At a glance

Client
Agility
Location
Jeddah, KSA
Year
2025
Buildings
A, B, C and D: pre-engineered steel
Scope
Architecture & façades · structure & foundations

The brief

A strip mall in Jeddah needing its façades designed and its pre-engineered buildings anchored to foundations that pass the Saudi Building Code checks.

What we delivered

  • Architectural façade design
  • Foundations, columns and grade beams engineered in ETABS and SAFE, with footings checked in Tekla Tedds
  • Steel reactions taken from the PEB manufacturer’s load sheets, not assumed
  • PEB anchorage design in RAM with SBC sliding and overturning checks
  • Load combinations to the Saudi Building Code and ASCE 7; concrete to ACI 318-19 (C35–C40, Fy 420 MPa)
  • Full calculation report plus IFC structural drawing set in CAD and PDF

The model, moving

Fly-through of the strip mall model.

Project images

Site overview with the retail blocks.
Site overview with the retail blocks.
Aerial render of the retail blocks and parking.
Aerial render of the retail blocks and parking.
Aerial render along the main frontage and car park.
Aerial render along the main frontage and car park.
Street-level render of the shopfronts.
Street-level render of the shopfronts.
Aerial render of a retail block and its landscaping.
Aerial render of a retail block and its landscaping.
Render of the two-storey shopfronts and entrances.
Render of the two-storey shopfronts and entrances.
Render of the corner unit and screened façade.
Render of the corner unit and screened façade.
Render of the shopfronts from the parking aisle.
Render of the shopfronts from the parking aisle.
Render of the retail street with palms and parking.
Render of the retail street with palms and parking.

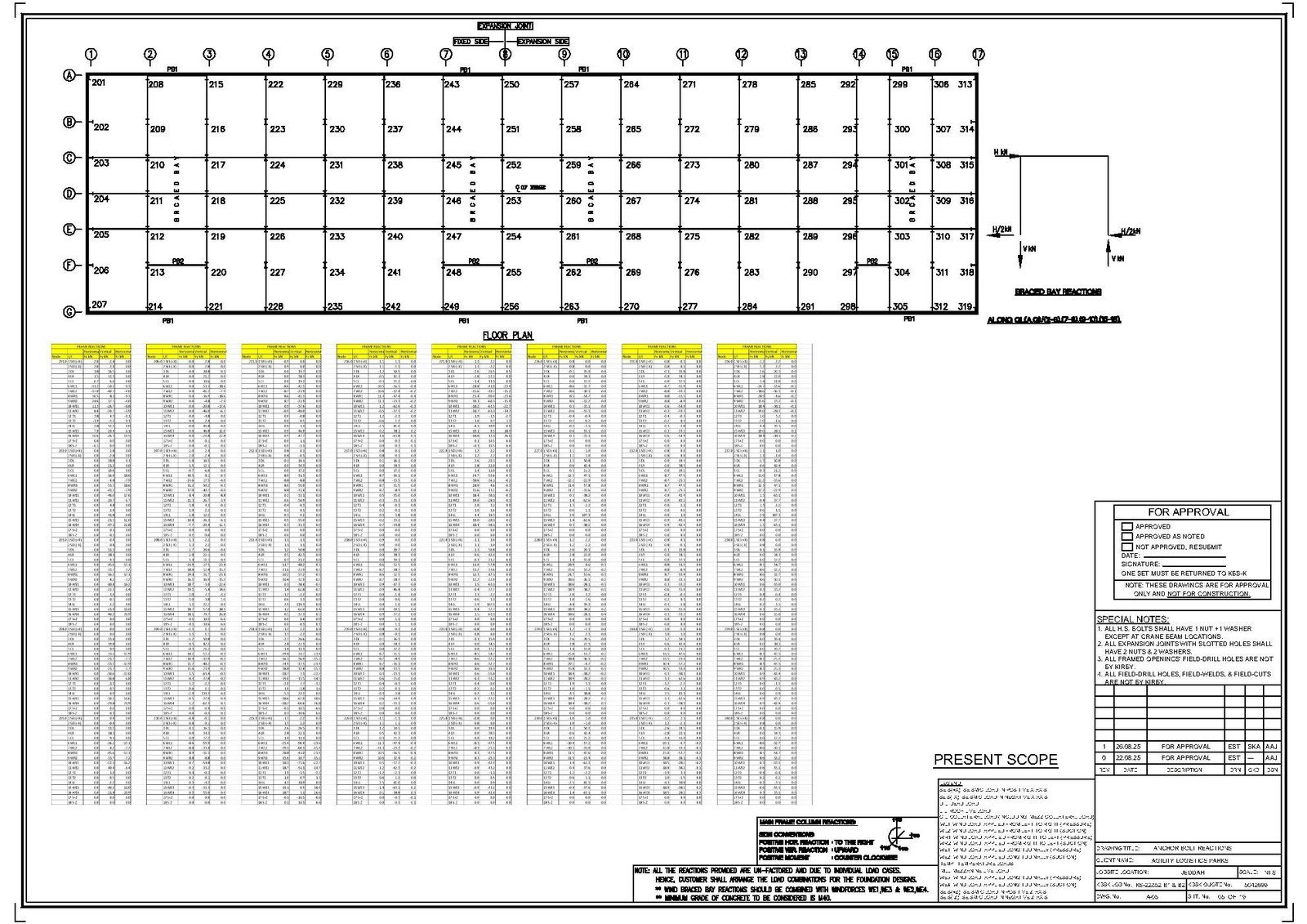

Foundation reactions sheet from the PEB package.
Foundation reactions sheet from the PEB package.
