Infrastructure

Al Thumamah Bridge

Steel works on a major steel and precast interchange bridge: the erection sequence, and the steel supports for the precast slabs, designed and shop-drawn.

Steel structures
Bridge works with the Riyadh skyline behind.

At a glance

Location
Riyadh, KSA
Programme
Royal Commission for Riyadh City
Scope
Steel structure

The brief

Steel engineering on an interchange bridge in Riyadh built in steel and precast concrete.

What we delivered

  • Major steel and precast interchange bridge works
  • Steel structure erection sequence
  • Steel supports for the precast slabs: design and shop drawings

Project images

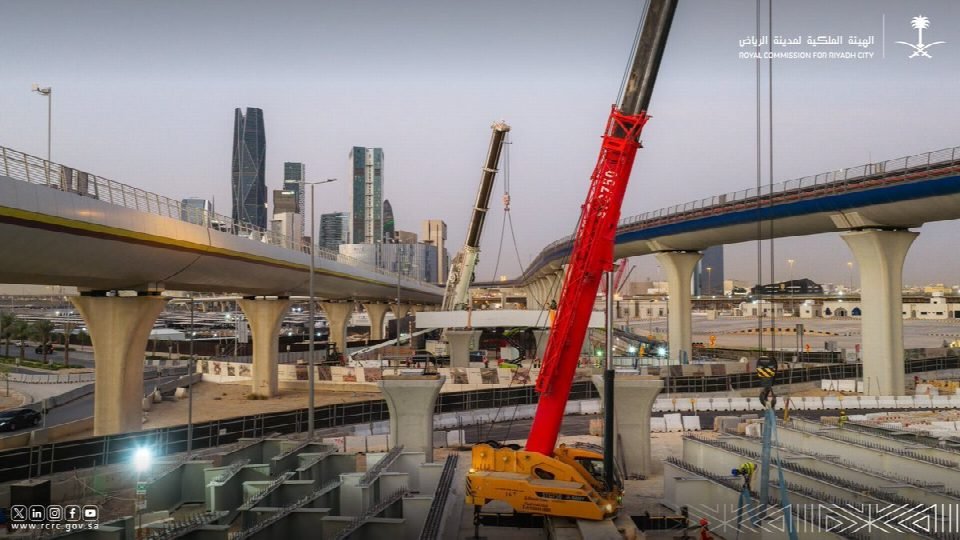

Cranes on the interchange during erection.
Cranes on the interchange during erection.

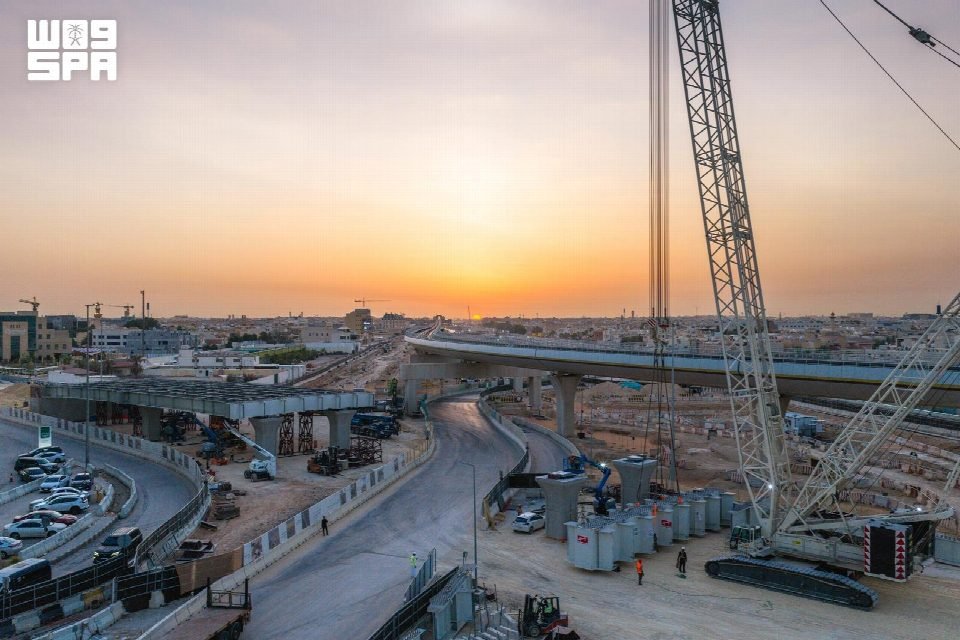

The interchange site at sunset.
The interchange site at sunset.

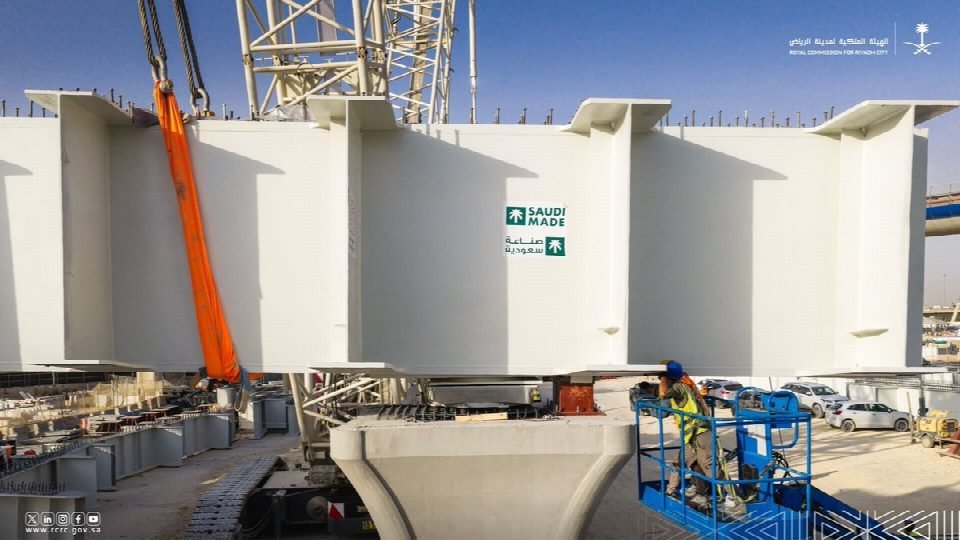

A steel bridge girder segment, rigged with a round sling, being set by crawler crane onto a concrete pier.
A steel bridge girder segment, rigged with a round sling, being set by crawler crane onto a concrete pier.

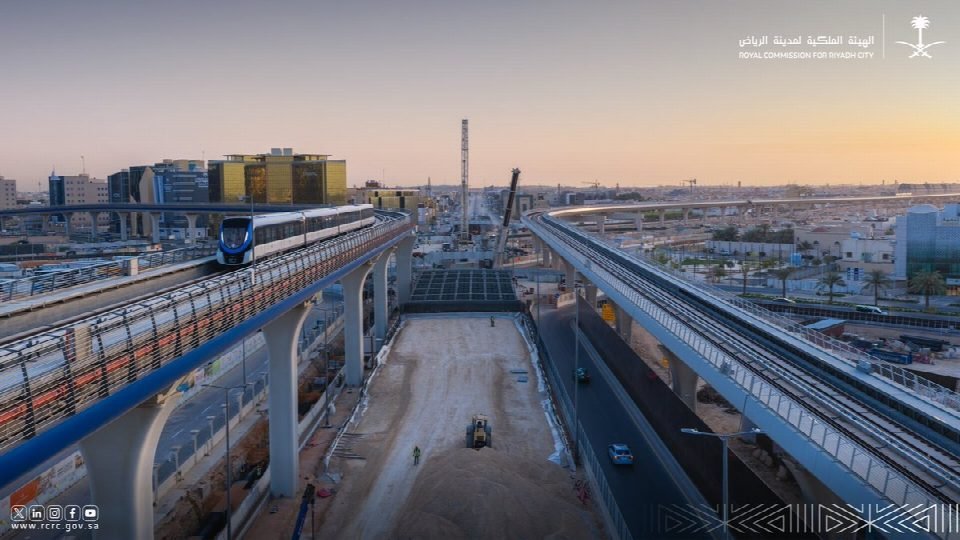

The interchange alongside the metro line.
The interchange alongside the metro line.
