Structural steel design of a fuel-station canopy for Aldrees in Abha: the four-column frame on concrete pedestals, its bolted end-plate beam-to-column connections and the column base plates with their anchor bolts, designed to AISC 360 and issued as general-arrangement and connection-detail sheets.
Steel structuresStructural design
At a glance
- Client
- Aldrees
- Location
- Abha, KSA
- Year
- 2023
- Scope
- Canopy structure, connections & foundations
The brief
A steel fuel-station canopy: frame, connections and base plates, designed and detailed.
What we delivered

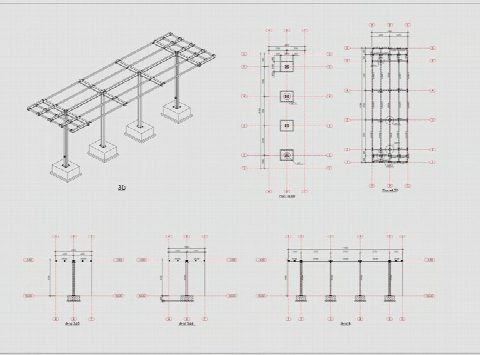

- Structural design of the canopy frame to AISC 360, with loads to ASCE 7 and the Saudi Building Code
- Bolted end-plate connections between the canopy beams and the columns, modelled and checked in 3D

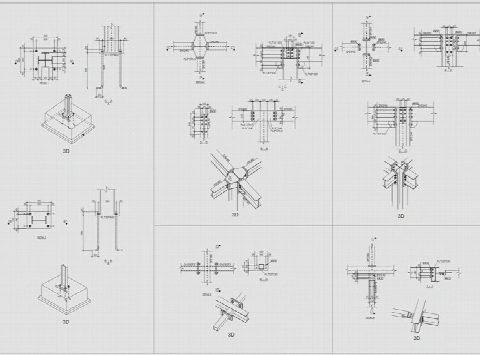

- Column base plates and anchor bolts set in the concrete pedestals
- General-arrangement and connection-detail sheets
